Framebuffer::GFX

That new base class takes all the GFX glue and color support I mixed (GFX RGB565, FastLED CRGB structs (RGB888 24bit), and uint32_t backed 24bit RGB888 colors, and creates a virtual framebuffer compatible with FastLED and SmartMatrix (which thankfully can use the same 3 byte per pixel array type).
Framebuffer::GFX in itself is only a framebuffer storage and method holder, but it contains so much common code that my 3 drivers that use it are only a few dozen lines of code after inheriting from it.

Here is the list of drivers I've written against Framebuffer::GFX:

Here is an example of code ultimately running on top of Framebuffer::GFX with FastLED::NeoMatrix on ESP8266 (24x32 and 32x32) and SmartMatrix::GFX on ESP32 (64x96):

Below is the same code again now running on top of FastLED_SPITFT::GFX on an SSD1331 96x64 TFT screen:

FastLED_SPITFT::GFX

SSD1331

Here is a video of Jason Coon's Aurora in 64x96 rotated to the SSD1331 96x64 resolution:

It's ironic that normally Neopixel matrices look like they have huge pixels compared to RGBPanes, but here my 64x96 RGBPanel looks huge compared to the same resolution on SSD1331:

rotating 3D cube with temporal fade

Table from Mark Estes Video Demo:

ST7735 or ILI9341

As a result, all you need to do is to pass the different tft object, display size, and everything else works.

Adafruit_ILI9341 *tft = new Adafruit_ILI9341(TFT_CS, TFT_DC, TFT_RST);
or
Adafruit_ST7735 *tft = new Adafruit_ST7735(TFT_CS, TFT_DC, TFT_RST);
FastLED_SPITFT_GFX *matrix = new FastLED_SPITFT_GFX(matrixleds, mw, mh, mw, mh, tft, 0);

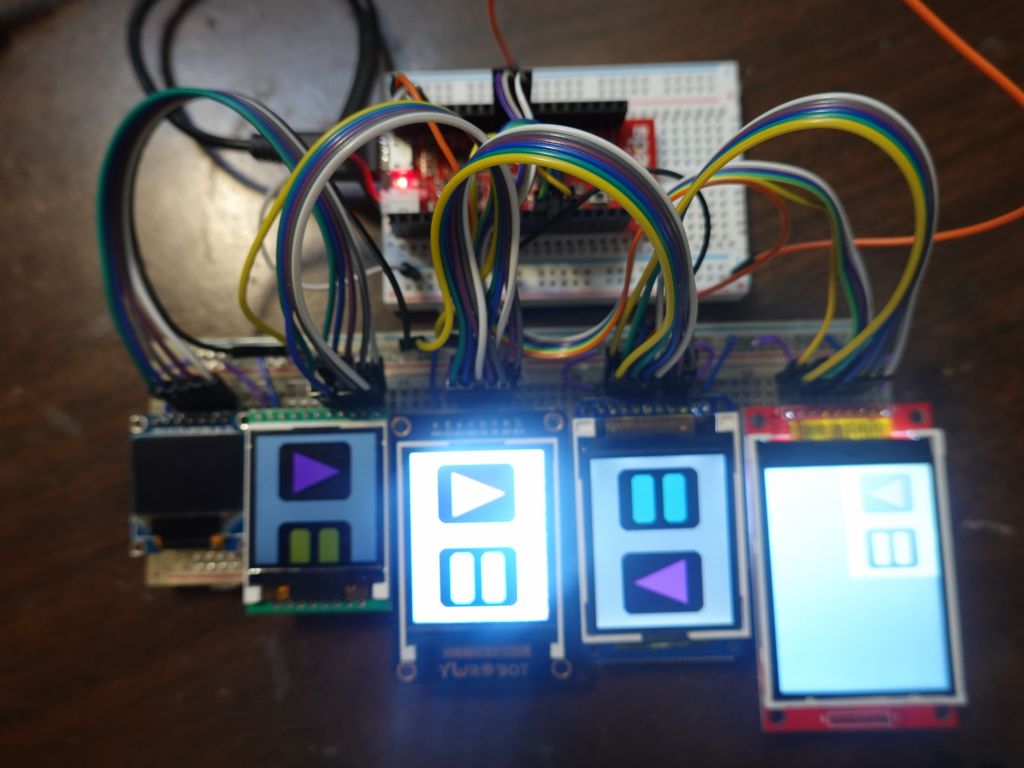

For comparison, SSD1331 vs ST7735 128x128, ST7735 128x160 from 2 different vendors and slightly different chips, and ILI9341 with a full 320x240 which stretches the limit of this library since it requires 225KB for that many pixels and that only fits on a teensy 3.5/3.6:

the SSD1331 screen is off as it's not compatible and requires different code to turn on

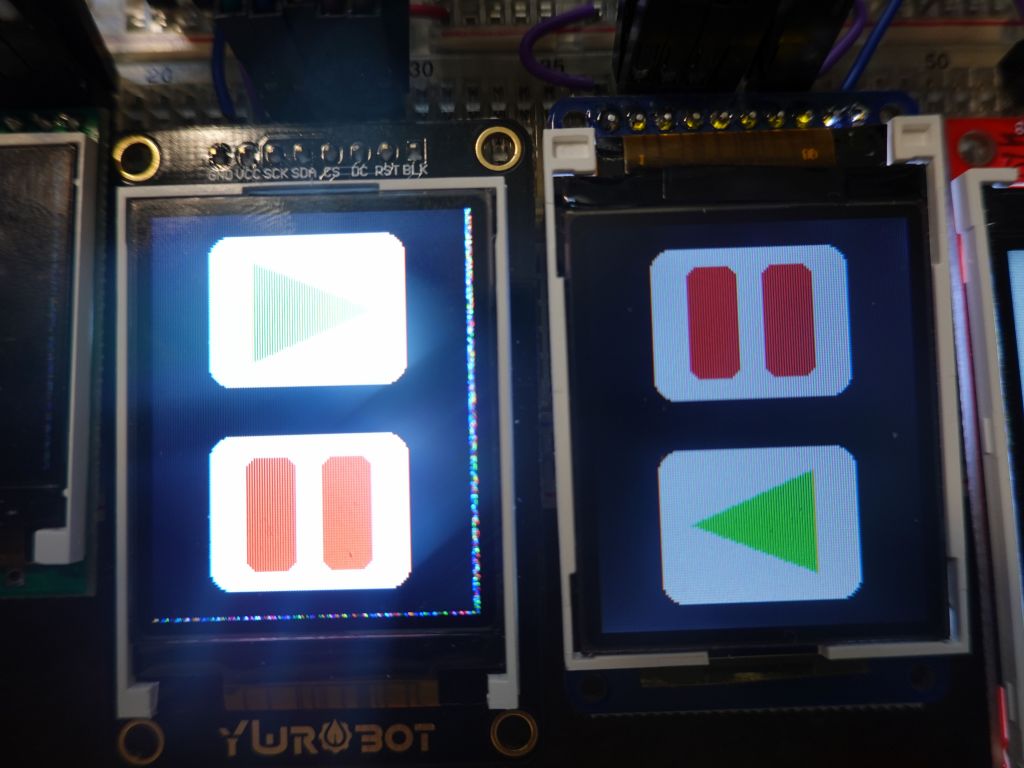

ST7735R vs ST7735S chip revisions show a few differences

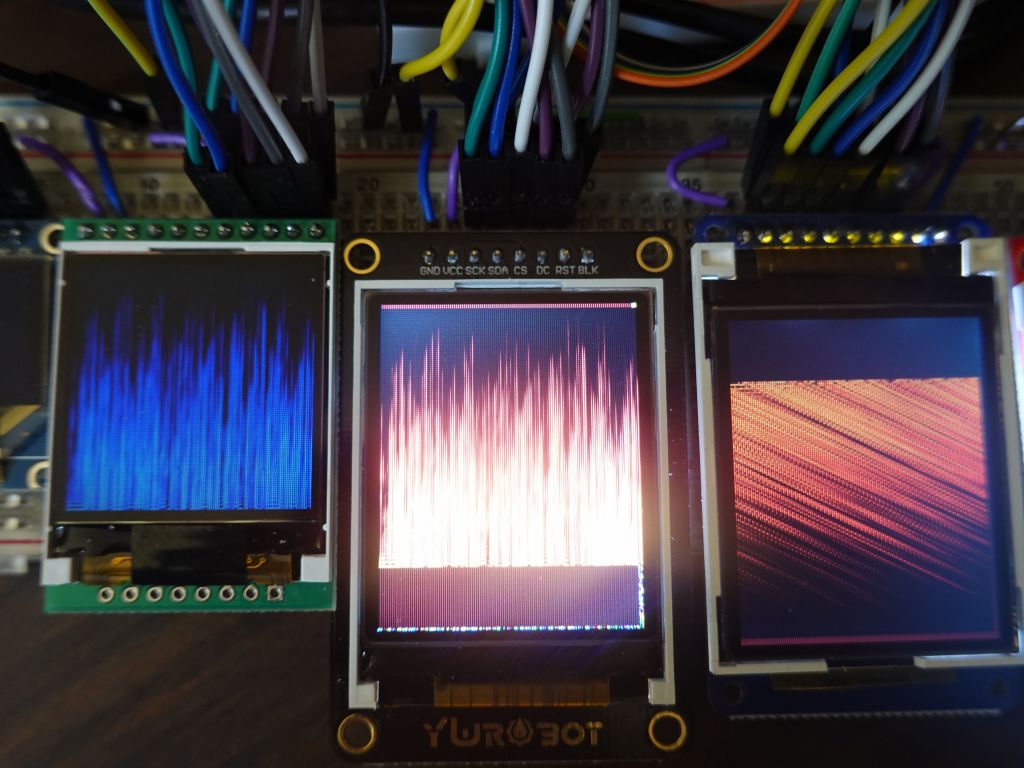

brightness is also different

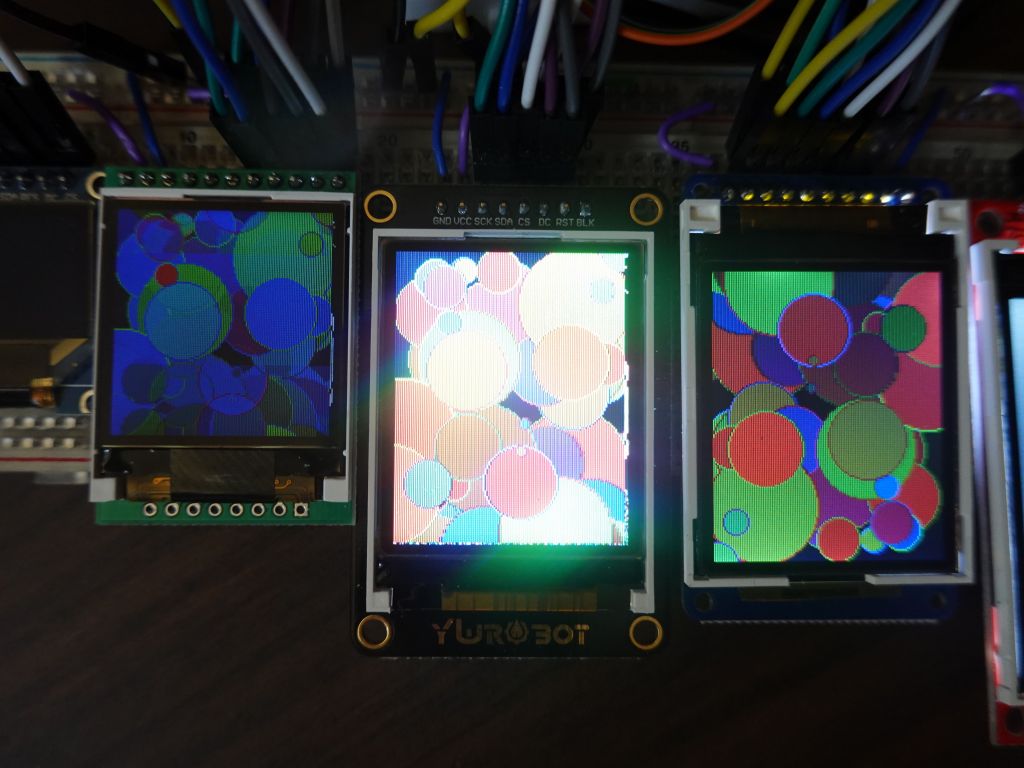

code for the 128x128 ST7735 doesn't mis-display the same on the two 128x160 displays

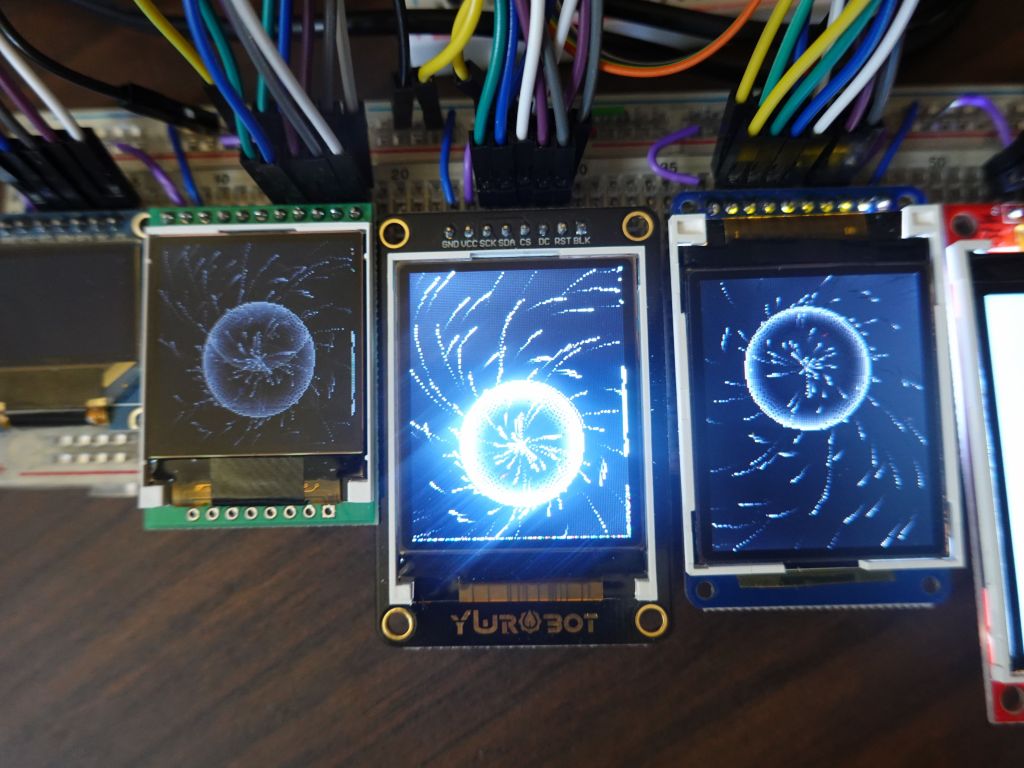

Some demos showing 128x128 and 128x160 on multiple size screens (for physical size comparison):

7 months later, I was also able to make Framebuffer::GFX working on ESP32 after adding PSRAM support as the fragmented ESP32 memory didn't have the 224KB of required contiguous RAM. It was barely working on teensy 3.6 which didn't have this problem, but it was still very low on RAM to run anything while storing such a big framebuffer. The other issue is that it's slow to push a framebuffer of that size over SPI at 24Mhz, in real life I'm only seeing 5fps or so on ESP32 due to the delays of reading from PSRAM. With more optimizations, it could maybe reach 12fps or more (the actual TFT can do 25fps at 40Mhz and maybe 40fps if wiring allows for 80Mhz):

ILI9341 is slightly compatible with the ST7735 screens, shown for scale here

ESP32 Pro with PSRAM needed to store the ILI9341 framebuffer. Display not too compatible with ST7735

zoomed in ILI9341 is very nice resolution

Hopefully this is useful to you and by using the FastLED_SPITFT::GFX API, you can re-use your code on TFTs, FastLED::NeoMatrix and SmartMatrix::GFX.
